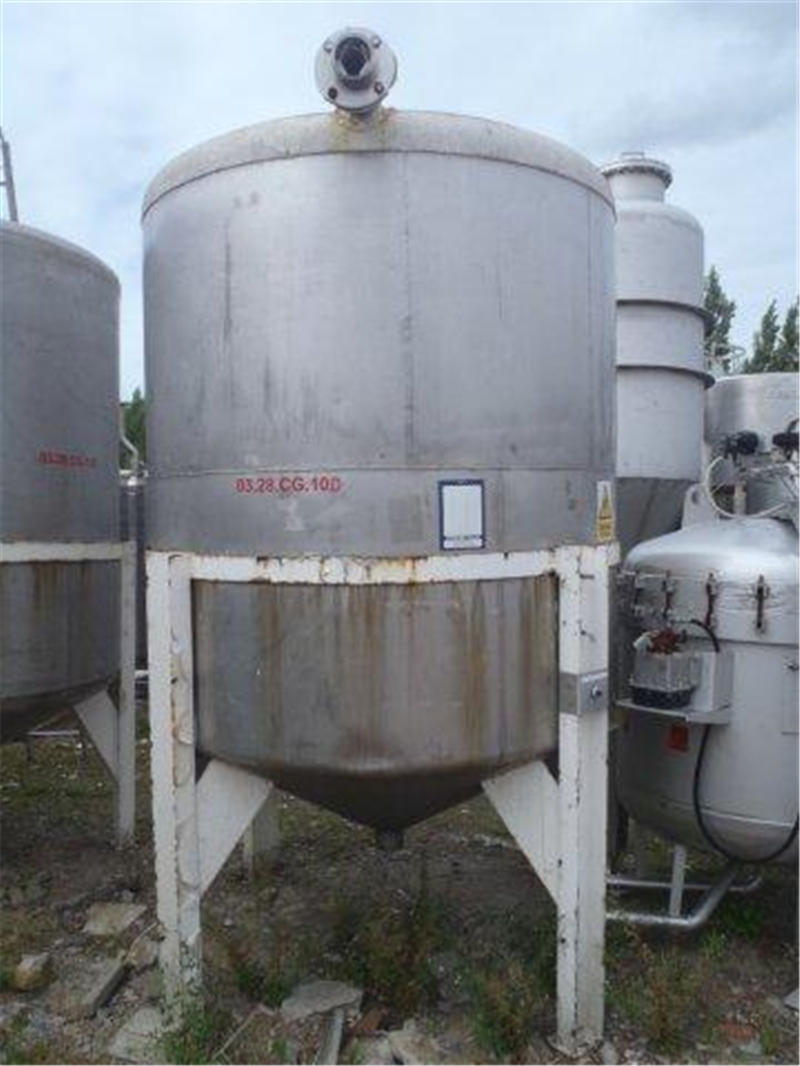

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 5000 L
- In stock: 1
General | |
---|---|
Item number | 03.28.CG.10d |
Material | Stainless steel 316 |

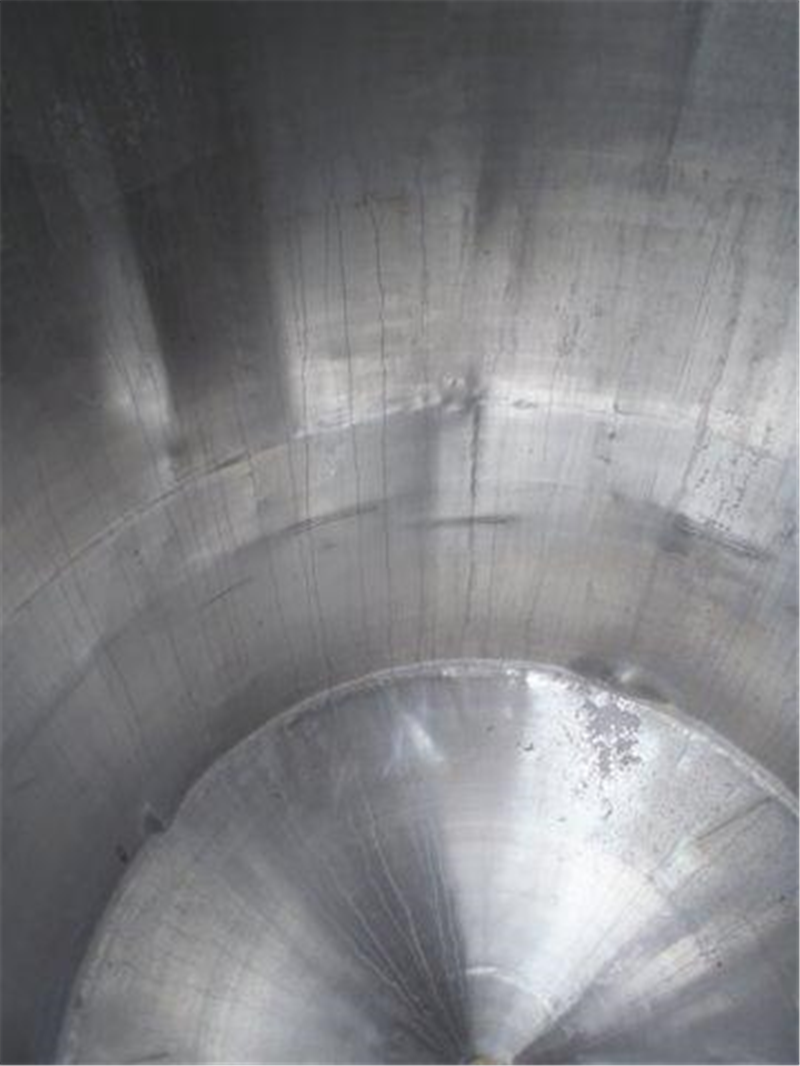

Finishing weldings inside | Grinded |
Number | 1 |
Capacity (Liters) | 5000 |
Type tank | Storage tank |

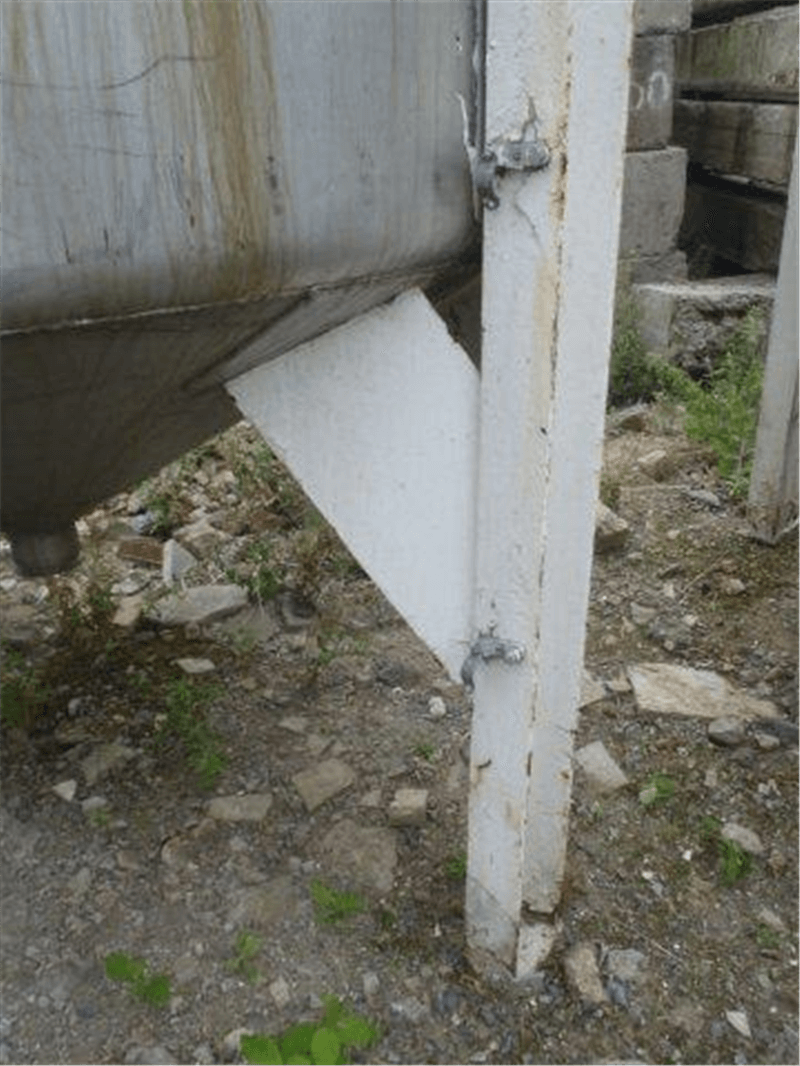

Fixation | 4 legs |
Model of the tank | Vertical |
Shape of the tank | Cylindrical |

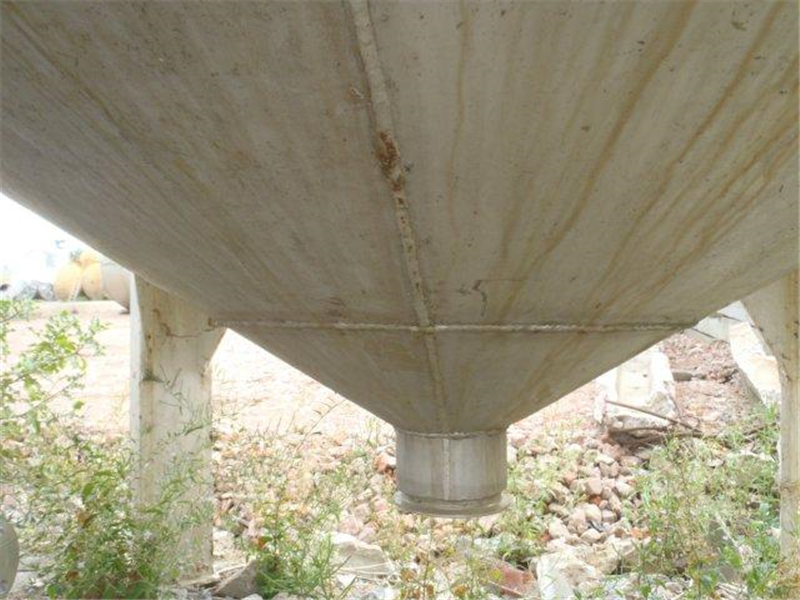

Bottom | Conical bottom |
Tank model | Single wall |
Number of manhole | 1 |

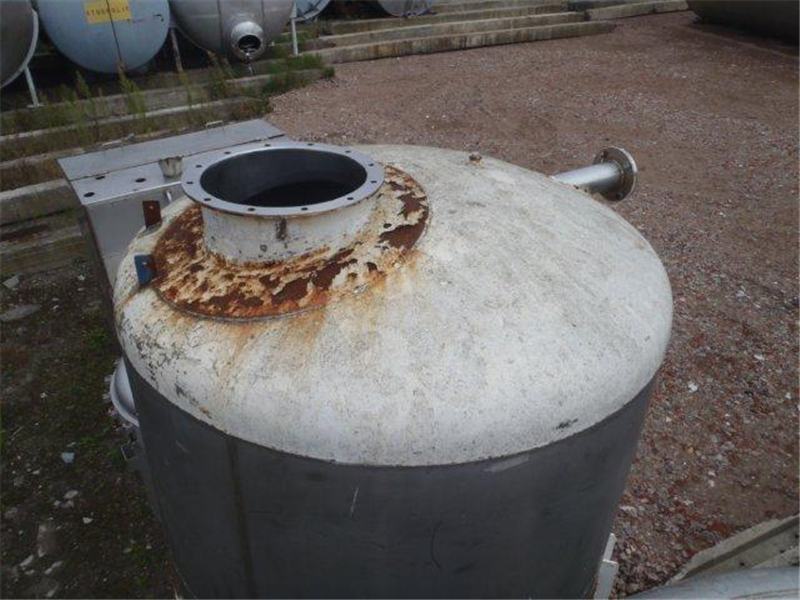

Position of manhole (s) | Top |
Dimensions of manholes | Ø450mm |
Tank with total drain? | Yes |
Type of outlet (s) | Tri-Clamp |
Diameter of outlet (mm) | 65 |
locality | B-7711 Belgium |
Last application | Food |
Provision tank cleaning | None |
Weight (kg) | 950 |
Condition | Used |
Type plate manufacturer | No |
Construction data available | No |
Drawing 1 | t0328CG10d.pdf |
Top side | |
---|---|
Configuration top-side | Closed |
Detail closed top side | Dished bottom |
Dimensions | |
---|---|
Cylinder Thickness (mm) | 3,2 |
Bottom thickness (mm) | 4,8 |
Cylindrical length (mm) | 1840 |
Height bottom (mm) | 500 |
Total height (mm) | 3100 |
Diameter tank (mm) | 1750 |
Insulation | |
---|---|
Insulation | No |
