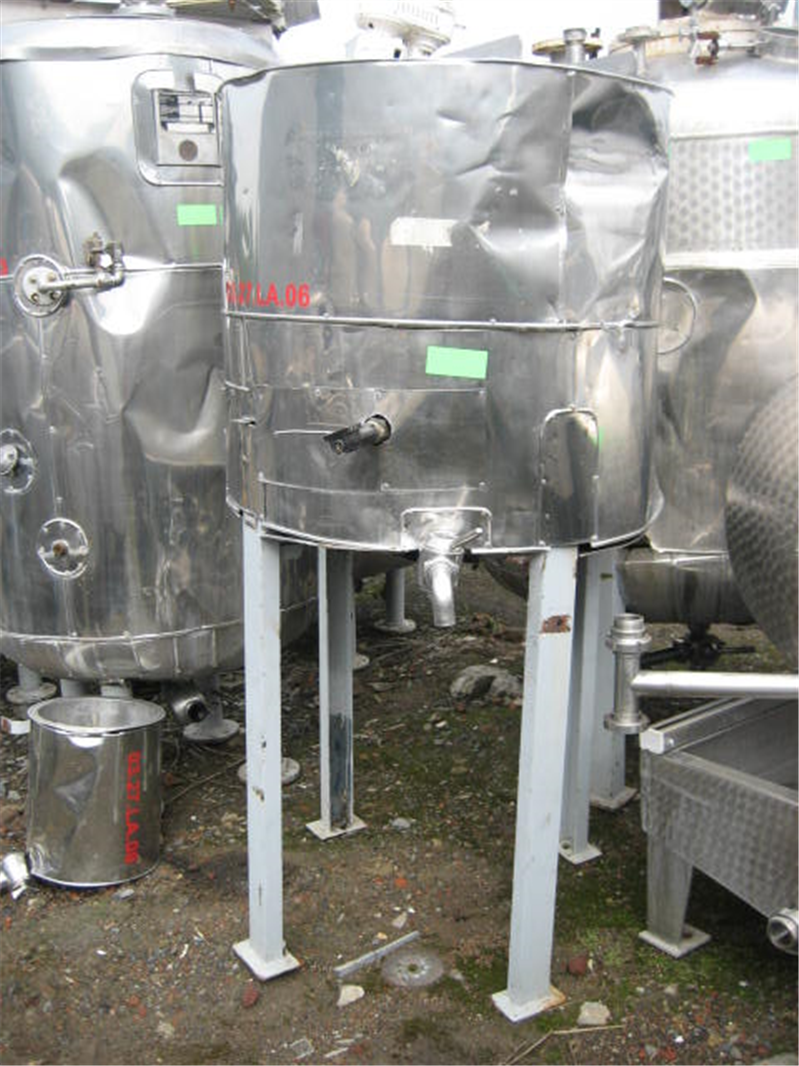

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 470 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.27.LA.06 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 470 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

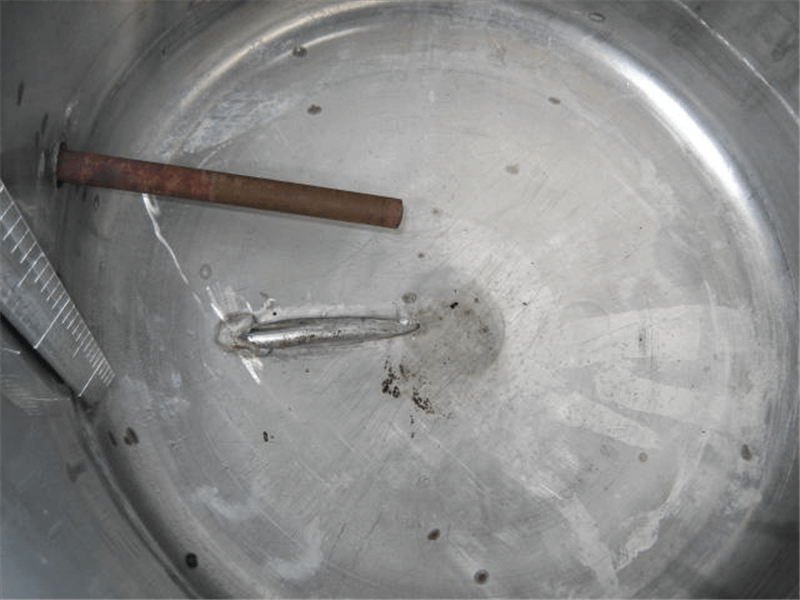

| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | wartelmoer NW25 |
| Diameter of outlet (mm) | 25 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Drawing 1 | t0327LA06.pdf |
| Top side | |
|---|---|
| Configuration top-side | Partly open |

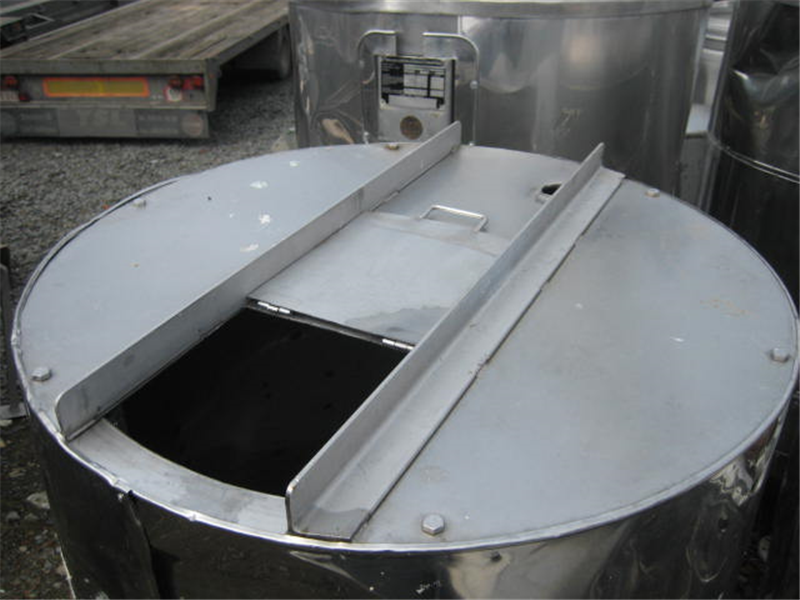

| Detail top side | Bolted cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,3 |
| Cylindrical length (mm) | 700 |
| Height bottom (mm) | 220 |
| Outside diameter tank (mm) | 960 |
| Total height (mm) | 1950 |
| Diameter tank (mm) | 850 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
