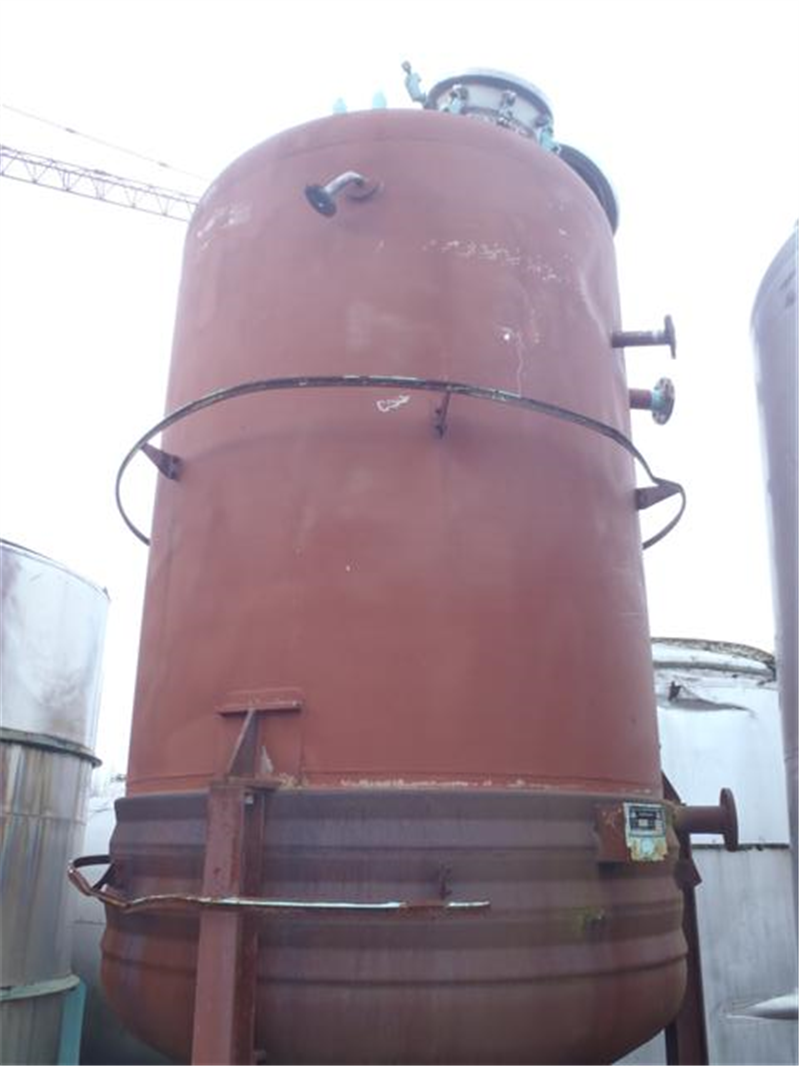

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8100 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.26.HG.47 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 8100 |
| Type tank | Pressure Tank |

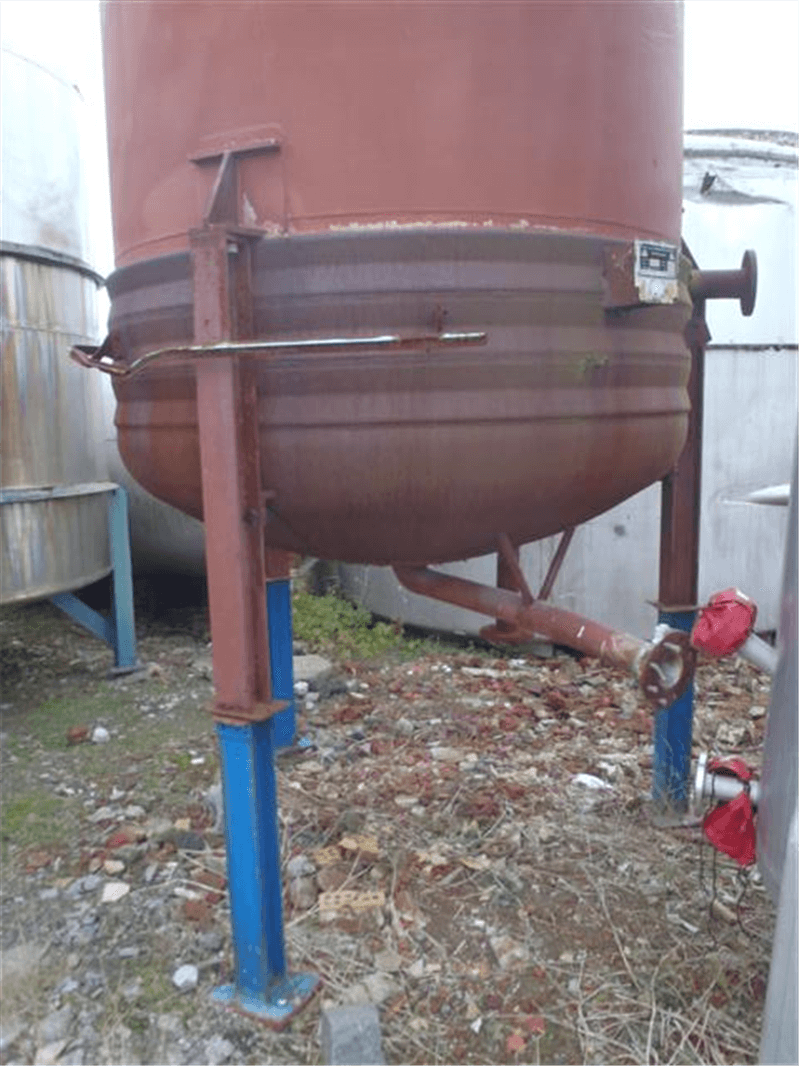

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

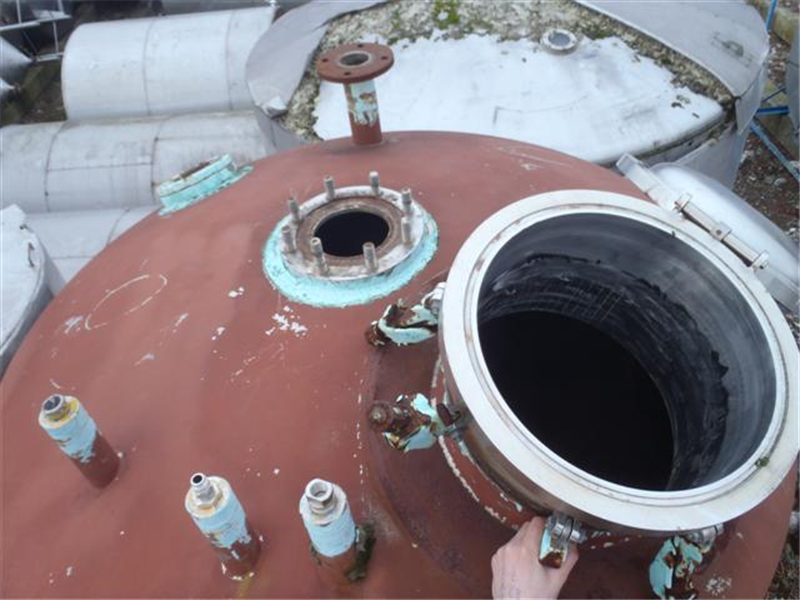

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 420 |
| Tank with total drain? | Yes |

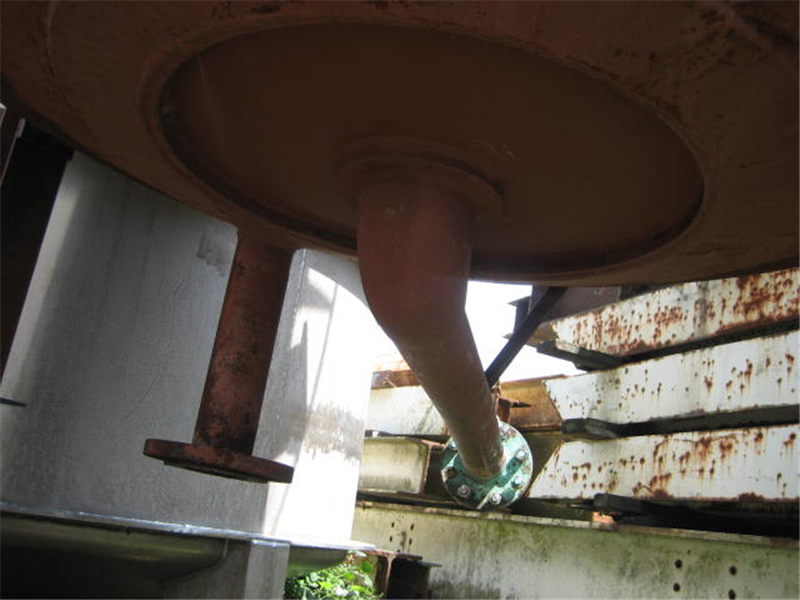

| Type of outlet (s) | Flens NW80 |
| Diameter of outlet (mm) | 88 |
| locality | B-7711 Belgium |
| Condition | Used |

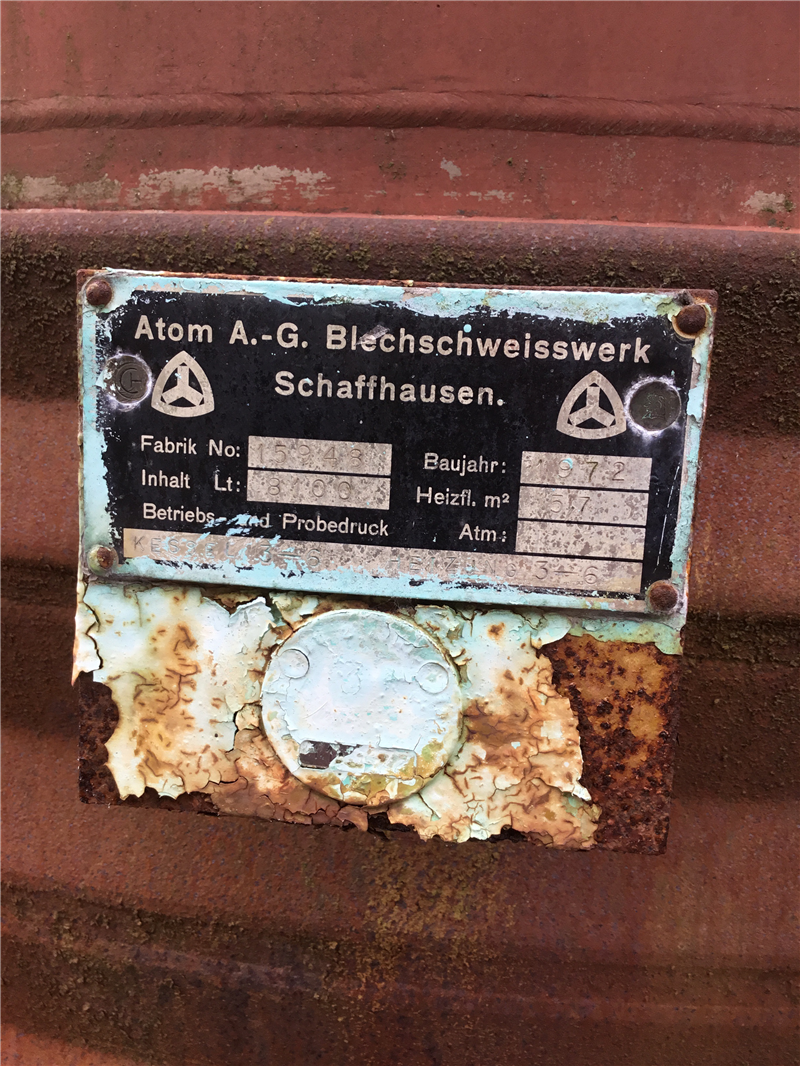

| Type plate manufacturer | Yes |
| Construction data available | No |
| Working temperature (° C) | 80 |
| Drawing 1 | t0326HG47.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 7 |
| Cylindrical length (mm) | 2500 |
| Height bottom (mm) | 440 |
| Total height (mm) | 4555 |
| Diameter tank (mm) | 1800 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Heating 1: Max. service pressure | 3 |
