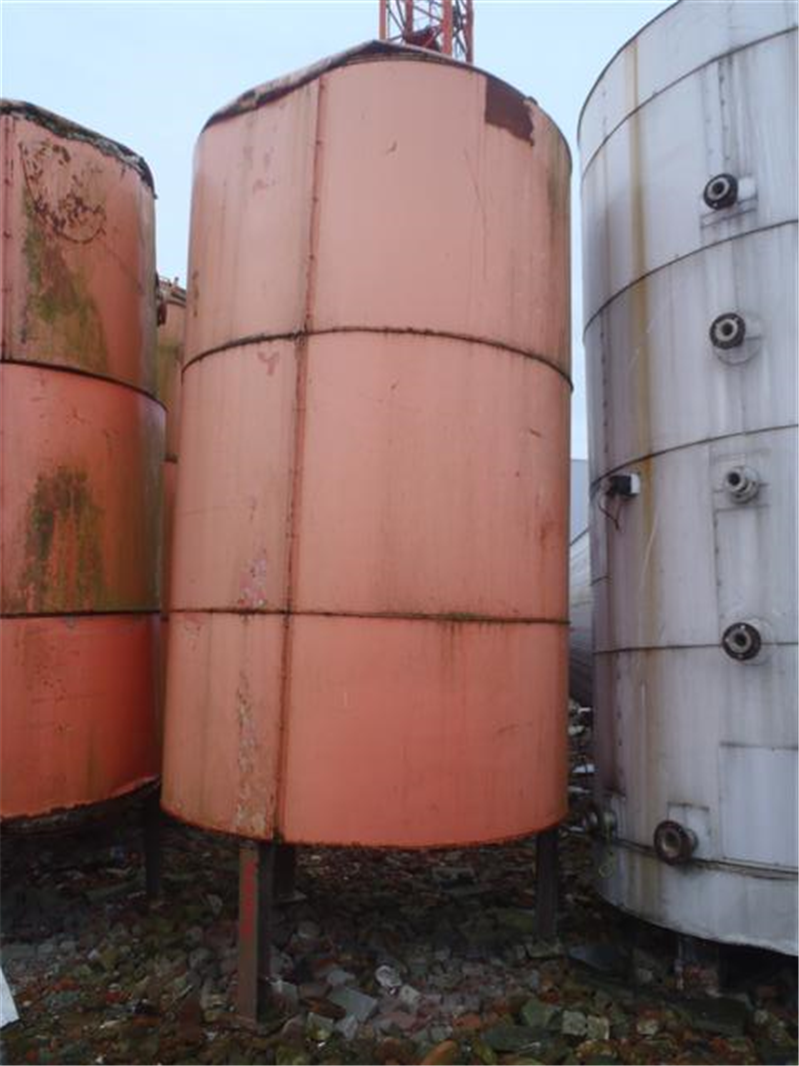

Used pressure tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8100 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.26.HG.09 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 8100 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 3 |
| Test pressure tank (Barg) | 6 |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

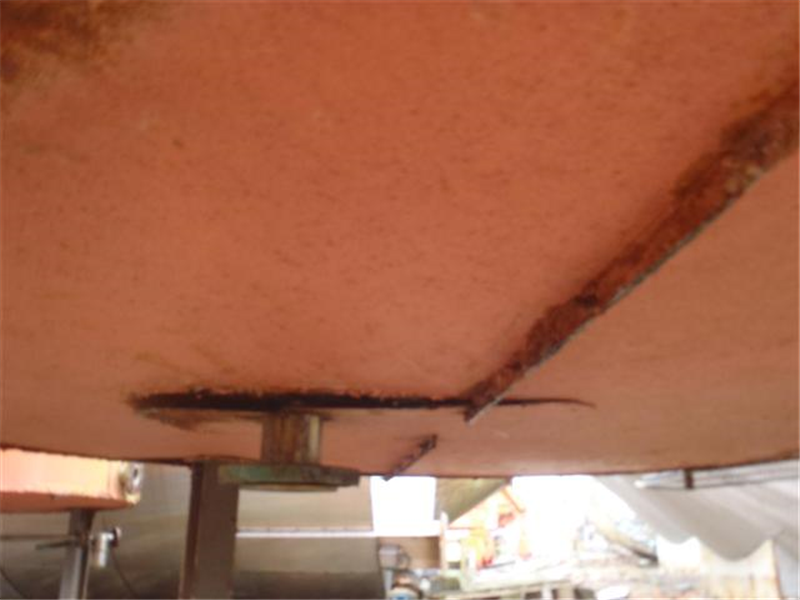

| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 1 |

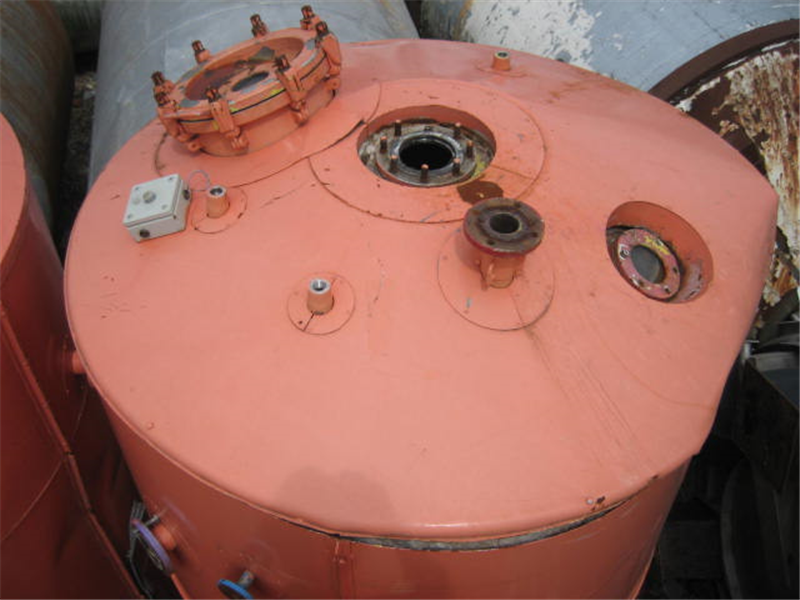

| Position of manhole (s) | Top |
| Dimensions of manholes | Ø420mm |
| Tank with total drain? | Yes |

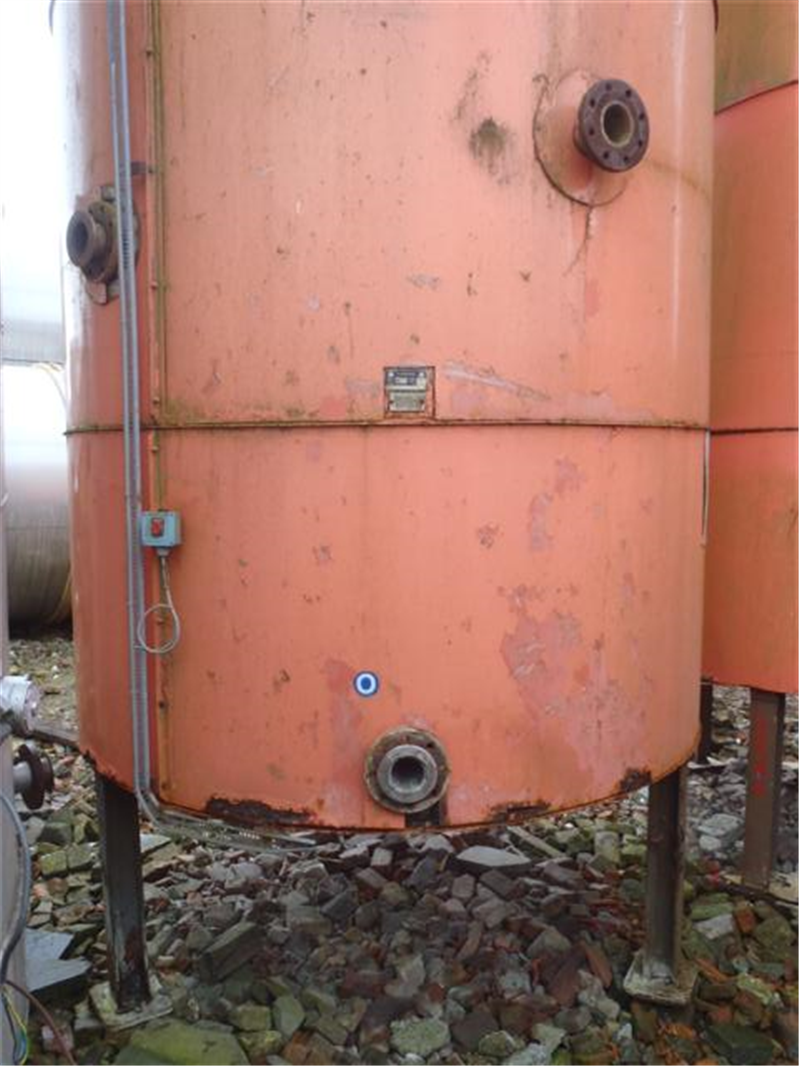

| Type of outlet (s) | Flens DN80 |
| Diameter of outlet (mm) | 88 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 2750 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Working temperature (° C) | 80 |
| Drawing 1 | t0326HG09.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 5,3 |
| Cylindrical length (mm) | 2500 |
| Height bottom (mm) | 440 |
| Outside diameter tank (mm) | 2100 |
| Total height (mm) | 4650 |
| Diameter tank (mm) | 1800 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 150 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Steel |
| Heating | |
|---|---|
| Number of heating type | 1 |

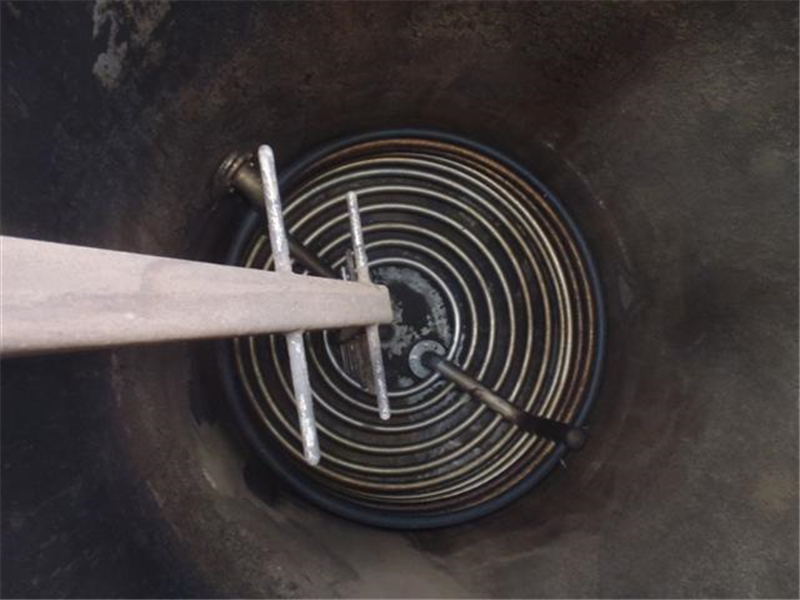

| Heating 1: Type | Heating coil on bottom and cylinder |
| Heating 1: Max. service pressure | 3 |
| Heating 1: Max. design pressure °C | 80 |
