Used pressure tank
- Material: Steel-emailed
- Condition: Used
- Volume (in litres): 35090 L
- In stock: 2
| General | |
|---|---|
| Item number | 01.38.RU.01 |
| Material | Steel-emailed |
| Number | 2 |
| Capacity (Liters) | 35090 |
| Type tank | Pressure Tank |
| Service pressure tank (Barg) | 8 |

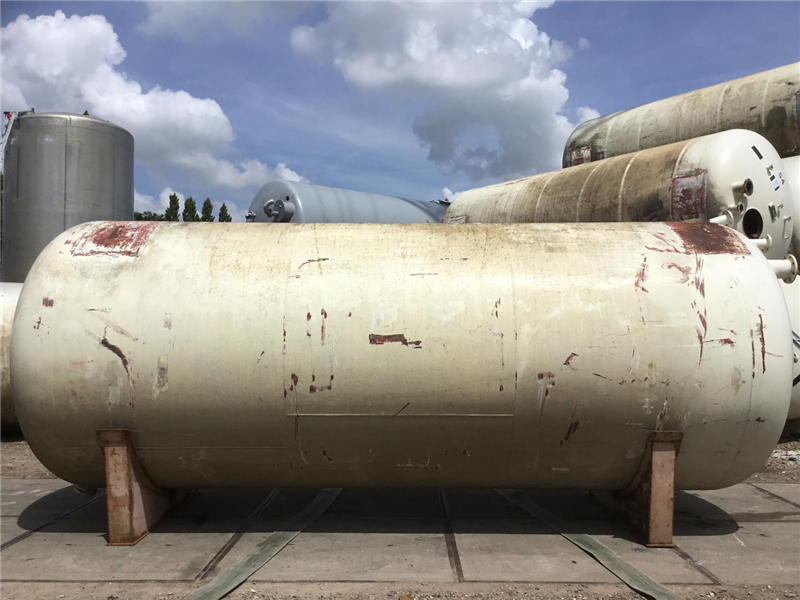

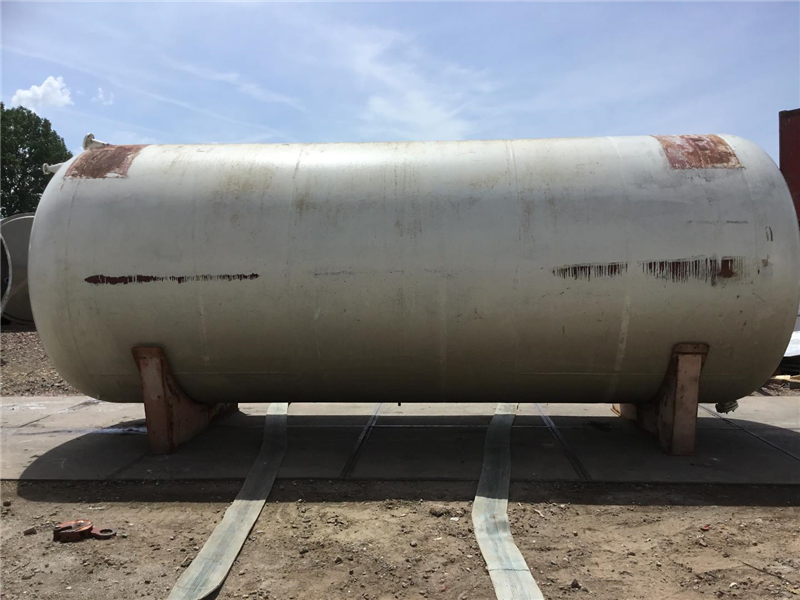

| Fixation | 2 cradles |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |

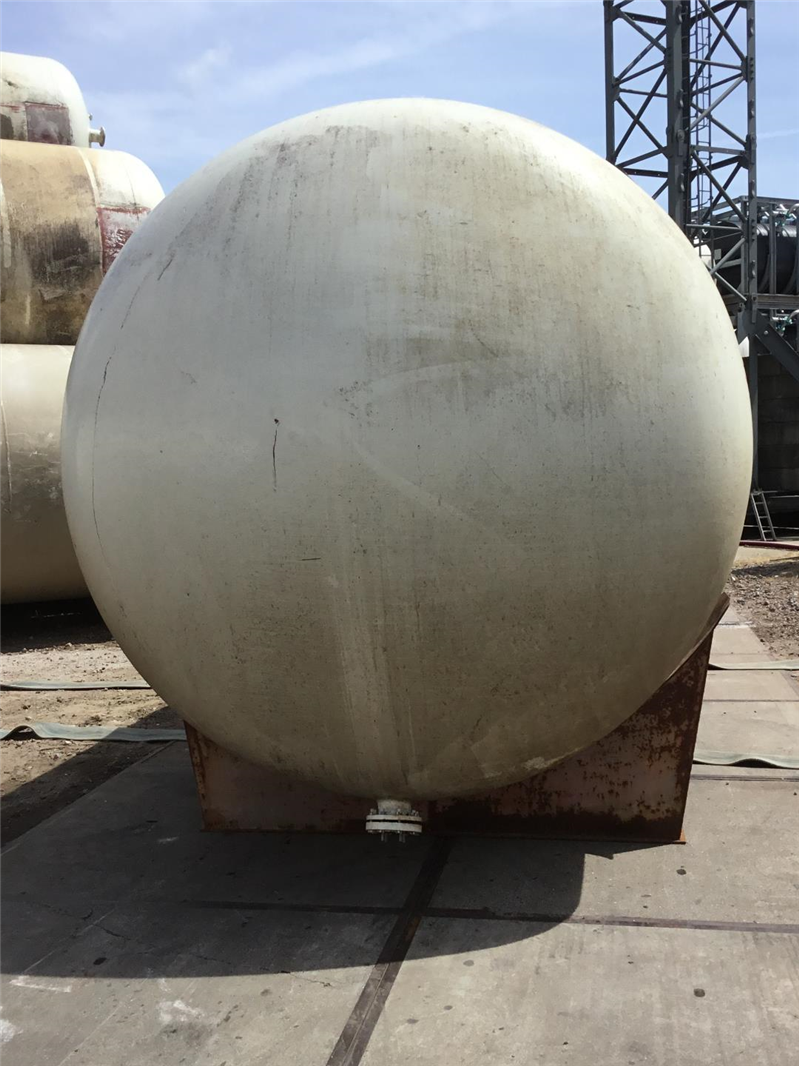

| Bottom | Dished bottom |
| Tank model | Single wall |

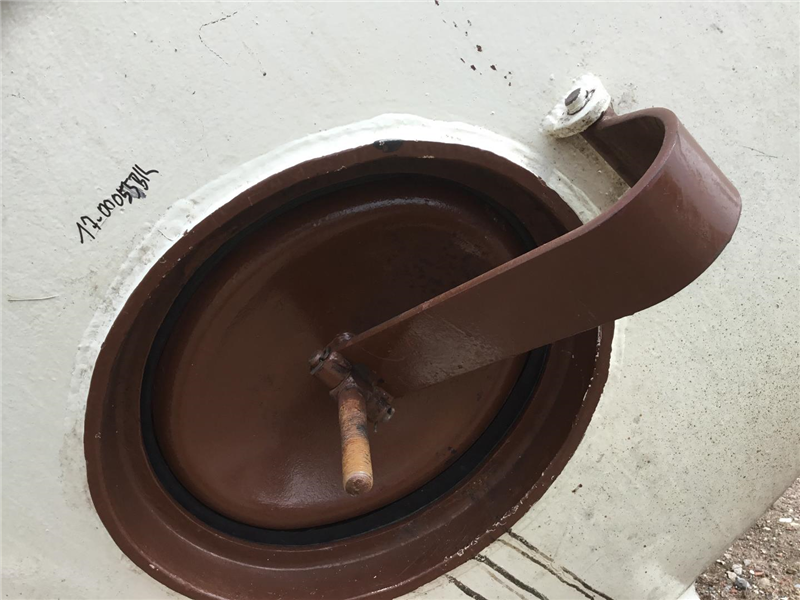

| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 450x360 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flensaansluiting |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 10000 |
| Condition | Used |

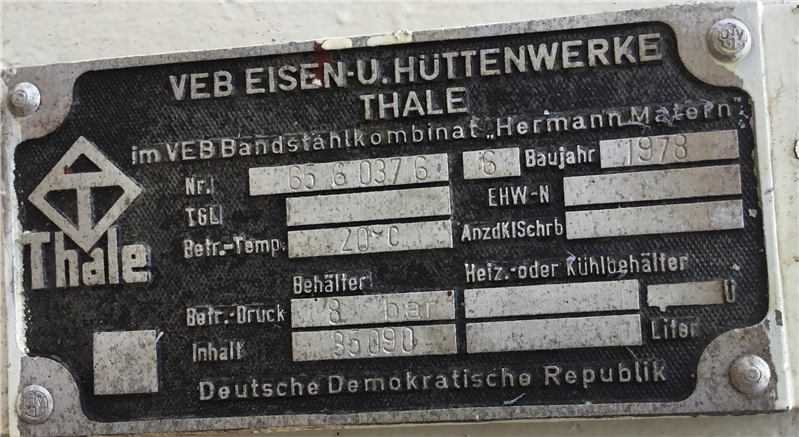

| Type plate manufacturer | Yes |
| Manufacturer | Eisen- U. Hüttenwerken Thale |
| Year Built | 1978 |
| Construction data available | No |
| Working temperature (° C) | 20 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 18 |
| Bottom thickness (mm) | 18 |
| Periphery (mm) | 8780 |
| Cylindrical length (mm) | 4820 |
| Length (mm) | 6340 |
| Diameter tank (mm) | 2795 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

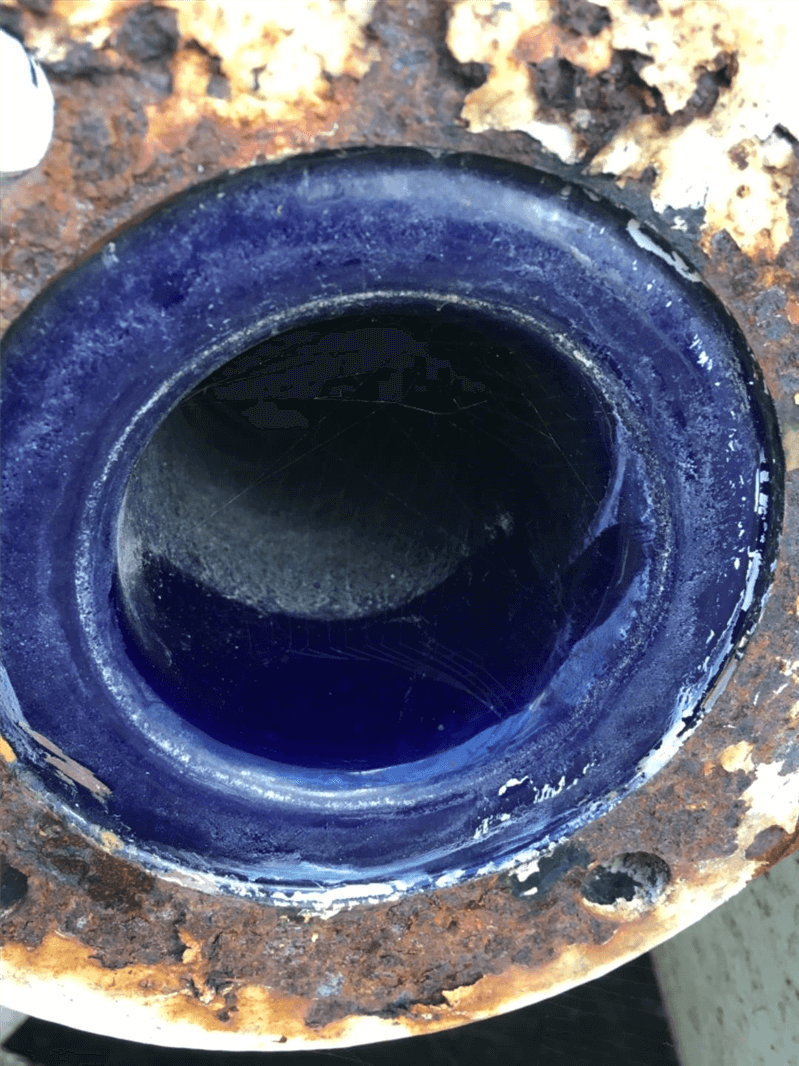

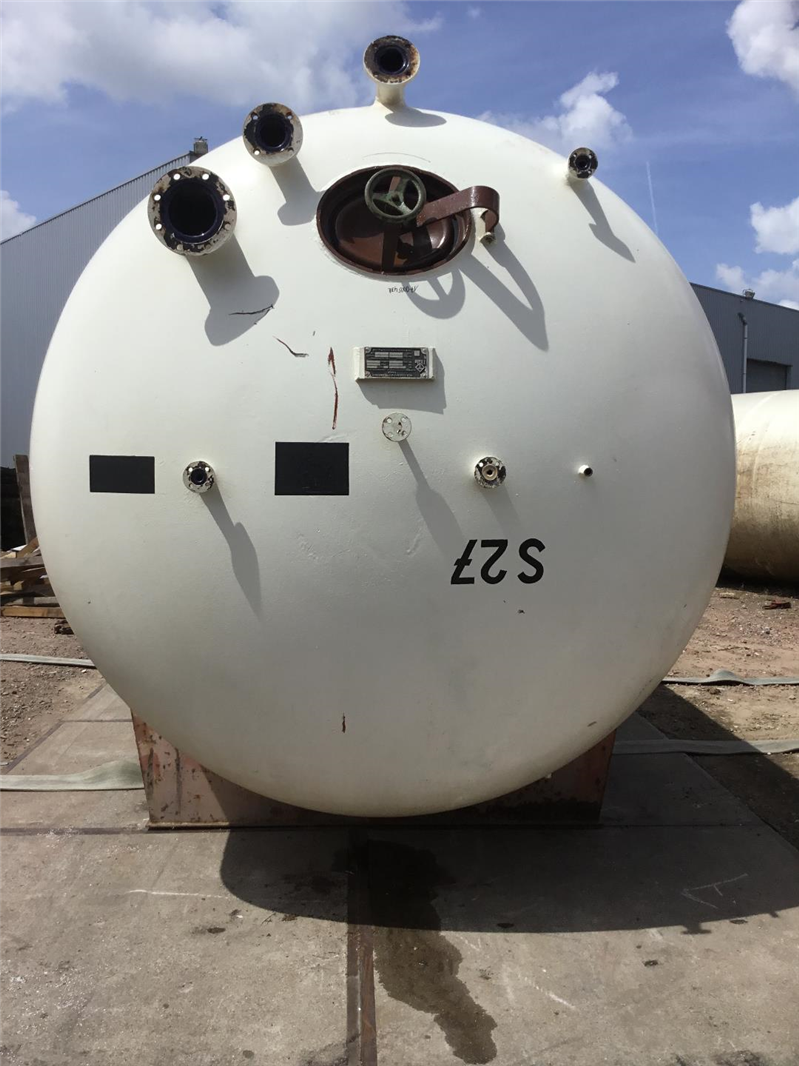

| Description (EN) | Connection side 1: manhole 450x360mm - Flange connection NW20 (3x) - Flange connection NW 80 (2x) - Flange connection NW150 (1x) • Connections at top: Flange connection NW32 + NW100 • Height end face: 600 mm + 800 mm |
